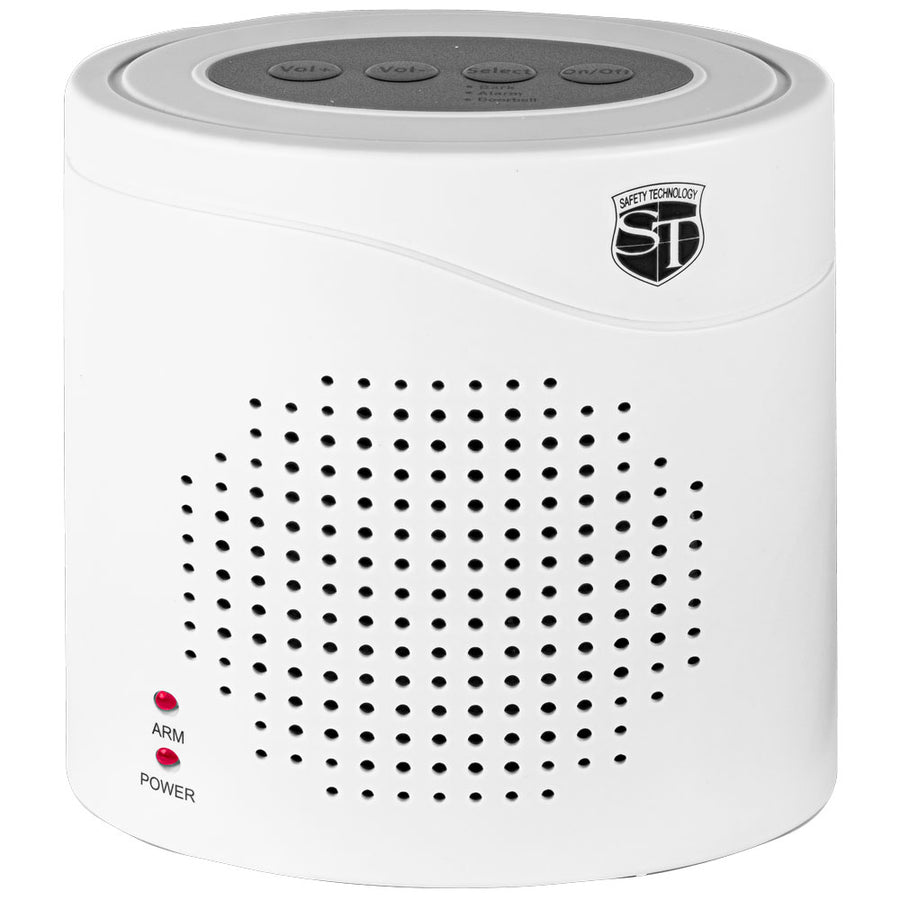

Safety Technology Barking Dog Alarm with Radar & Remote

• Updated Safety Technology Barking Dog Alarm
• Radar technology detects approaching movement through many common walls
• Designed for indoor placement
• Nine selectable sound options
• Multiple barking dog sounds
• Chime mode for visitor or customer notification
• Alarm mode for audible security
• Low, Mid and High radar detection settings
• Stronger radar detection range from the back of the unit
• Eight adjustable volume levels
• Maximum volume approximately 120 dB
• Wireless remote control
• Remote can arm and disarm the alarm
• Remote can change sound mode
• Remote can activate the panic alarm
• Remote range over 50 feet under suitable conditions
• AC adapter included for normal operation
• Accepts 8 AA batteries for temporary backup during a power outage
• No subscription or monthly monitoring fee
• Compact tabletop or shelf design
• 1-year warranty

• Brand: Safety Technology
• Model/SKU: ST-BARKINGDOG
• Product Type: Radar Barking Dog Security Alarm
• Installation: Indoor Use Only
• Detection Technology: Radar/Microwave
• Detection Settings: Low, Mid and High
• Low Setting – Front: Less than 2 m / approximately 6.5 ft
• Low Setting – Back: Approximately 3–6 m / 10–20 ft
• Mid Setting – Front: Less than 4 m / approximately 13 ft
• Mid Setting – Back: Approximately 6–9 m / 20–30 ft
• High Setting – Front: Less than 6 m / approximately 20 ft
• High Setting – Back: Approximately 9–16 m / 30–52 ft
• Sound Options: 9
• Modes Include: Barking Dog, Chime and Alarm
• Volume Levels: 8
• Maximum Volume: Approximately 120 dB
• Primary Power: AC Adapter
• Backup Power: 8 AA Batteries
• AA Batteries Included: No
• Remote Control: Included
• Remote Battery: Included
• Remote Range: 50+ ft under suitable conditions
• Dimensions: 6 x 5.75 x 3.75 in
• Color: White
• Warranty: 1 Year

• Safety Technology Barking Dog Alarm
• Wireless Remote Control with Battery
• AC Adapter
• Instructions
• Window Warning Sticker

• 1-year manufacturer warranty
• Warranty applies to eligible defects under the manufacturer's warranty terms
• Contact SDP Inc. for assistance with warranty questions or product troubleshooting

Does the Barking Dog Alarm need to be installed outside?
No. The Barking Dog Alarm is designed for indoor use. Its radar technology allows it to detect movement through many common exterior walls, doors and glass while the alarm remains safely indoors.

Which side should face the area outside that I want to monitor?
For this updated model, the back/battery-compartment side has the greater radar detection range. When monitoring an outside approach, place the alarm indoors with the back of the unit facing the exterior wall and monitored outside area.

Can I walk around inside my home without activating the alarm?
Proper positioning and the LOW detection setting may help reduce unwanted activation from movement inside the home because the front detection range is shorter than the back. However, radar is not an exact directional beam, so indoor movement cannot be guaranteed to never activate the unit.

Which sensitivity setting should I use?
Start with LOW and test the monitored outside area. If additional detection range is needed, try MID and then HIGH. Using the lowest setting that reliably covers the desired area may help reduce unwanted activations.

How far can the alarm detect movement?
Detection varies by direction and sensitivity setting. The supplied detection diagram indicates up to approximately 3–6 meters from the back on LOW, 6–9 meters on MID and 9–16 meters on HIGH. Actual range depends on wall construction, placement and surrounding conditions.

Will the radar work through walls?
It can detect through many common materials including wood, cement, brick, stucco and ordinary glass. Actual detection distance depends on the material and thickness of the barrier.

Will it work through metal?
Metal can block or interfere with the radar signal. Metal walls, walls containing metal studs, some tinted or metalized glass and extremely thick walls may prevent or substantially reduce detection.

What should I do if the alarm detects people moving inside my house?
Begin with LOW sensitivity and make sure the back of the alarm faces the exterior wall being monitored. Try repositioning the alarm if necessary. The shorter front detection range may help reduce unwanted indoor activation, but results depend on the room and surrounding materials.

What should I do if it does not detect someone outside?
Confirm that the back of the alarm faces the exterior wall, test the unit on LOW and then increase to MID if additional range is needed. Moving the unit to another position along the wall may also improve detection. Check for metal or other materials that could interfere with the radar signal.

How many sounds does the updated model have?
The updated model provides nine selectable sound options, including multiple barking dog sounds, a chime and an alarm.

How loud is the alarm?
The unit provides eight volume levels with a maximum output of approximately 120 dB.

Can I control it remotely?
Yes. The included wireless remote can arm and disarm the system, change the sound mode and activate the panic alarm.

What happens during a power outage?
The alarm normally operates from the included AC adapter. Eight AA batteries can provide temporary backup power during a power outage. AA batteries are not included.

Does the Barking Dog Alarm require a subscription?
No. There are no monthly monitoring or subscription fees required to operate the alarm.

• FOR INDOOR USE ONLY
• For outside approach detection, keep the alarm indoors and position the back/battery-compartment side toward the exterior wall being monitored
• Start with LOW detection and increase to MID or HIGH only when additional range is needed
• Actual radar detection distance varies with placement, wall construction and surrounding conditions
• Metal can block or interfere with radar detection
• Metal walls, walls containing metal studs, tinted or metalized glass and extremely thick walls may reduce or prevent detection
• Radar may also detect movement inside the home depending on placement and sensitivity
• Some experimentation with placement and sensitivity is normal during initial setup
• Keep the unit away from rain, moisture and outdoor exposure
• Do not place the speaker close to your ears when testing the alarm
• 8 AA batteries are required for battery-backup operation and are not included
